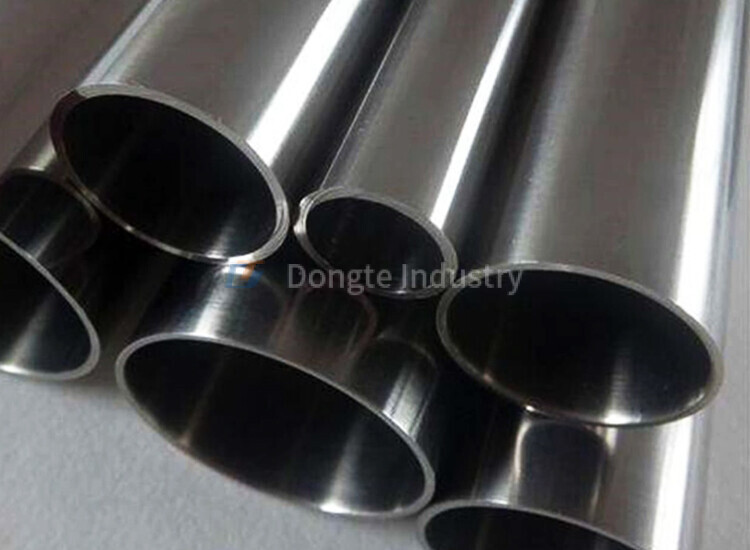

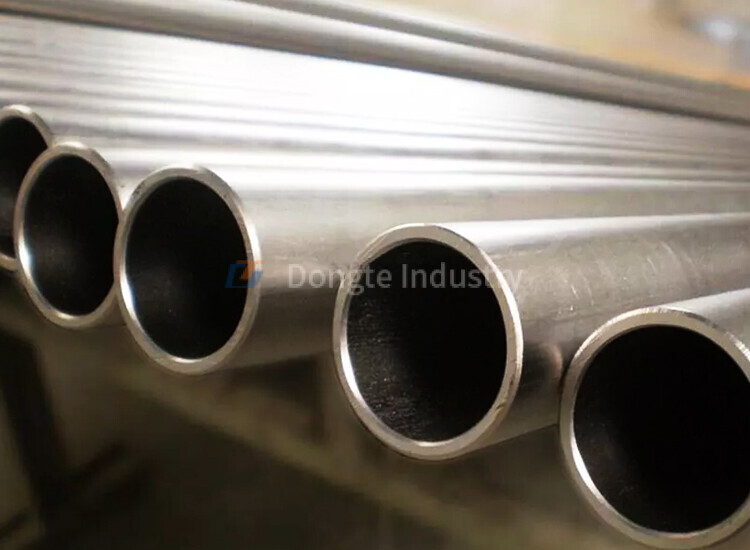

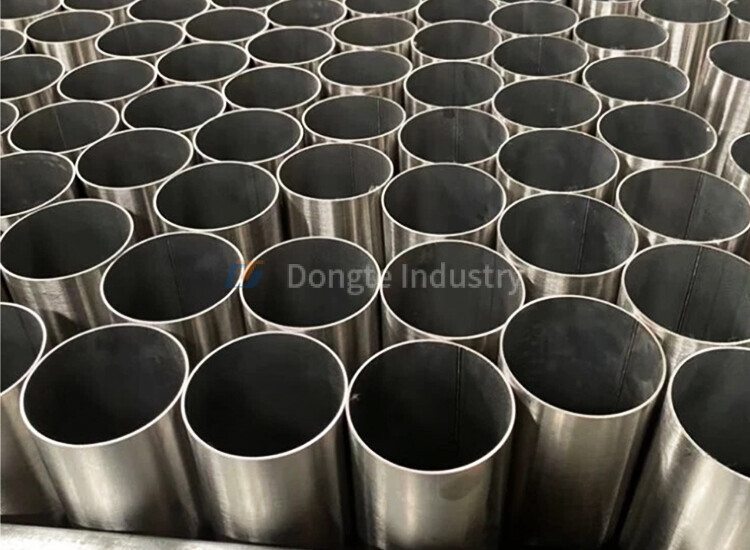

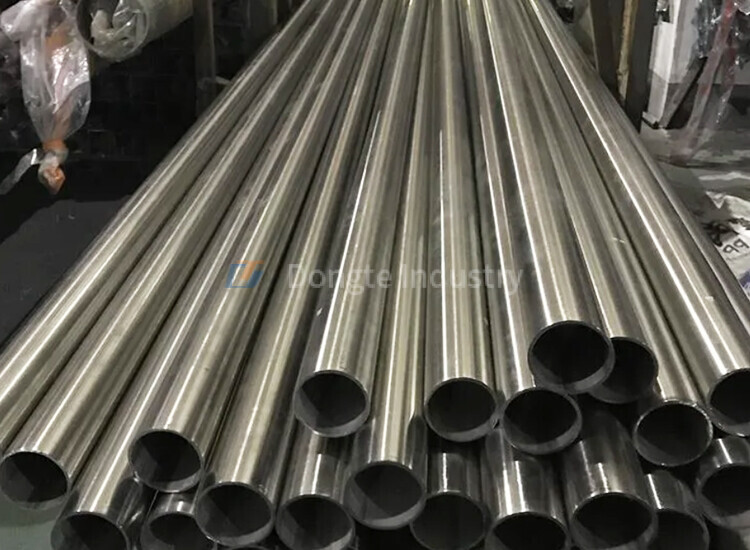

Inconel 600 Seamless Pipe is a nickel-chromium alloy used for applications that require corrosion and high temperature resistance. This nickel alloy was designed for service temperatures from cryogenic to elevated temperatures in the range of 2000° F. It is non-magnetic, has excellent mechanical properties, and presents the desirable combination of high strength and good weldability under a wide range of temperatures.
Inconel 600 Seamless Pipe can be both hot formed and cold formed using typical processes. Hot working should be performed between 1600° F and 2250° F avoiding any work between1200-1600° F because the ductility decreases in this temperature range.
We manufacture Inconel 600 seamless pipe & tube strictly according to ASTM B167 standard. For the Inconel 600 seamless pipe, we have oversized cold drawing equipment to meet your size requirements as much as possible. For Inconel 600 seamless tube, we also have high precision cold rolling equipment to meet your tolerance requirements. All of our Inconel 600 pipe & tubes are delivered with a pickled finish by default. If your material needs to be polished or sandblasted, we have you covered.
Chemical Composition
Chemical Composition According to ASTM B167
| Element | Content (%) |
| S | ≤0.015% |
| C | ≤0.15% |
| Cu | ≤0.50% |
| Cr | 14.0%~17.0% |
| Si | ≤0.50% |
| Mn | ≤1.00% |
| Fe | 6.0%~10.0% |
| Ni | 72.0% |
Physical Properties
| Density | g/cm3 | 8.47 |
| lb/in.3 | 0.306 |
| Melting Range | °F | 2470 - 2575 |
| °C | 1354 - 1413 |
Mechanical Properties
Mechanical Properties According to ASTM B167
| Condition & Size | Tensile Strength | Yield Strength (0.2% Offset) | Elongation | Reduction of Area | Hardness |
| MPa, min | MPa, min | %, min | %, min | Rockwell |
| Hot-worked or hot-worked annealed / 5 in. (127 mm) in outside diameter and under | 550 | 205 | 35 | ... | ... |
| Hot-worked or hot-worked annealed / Over 5 in. (127mm) in outside diameter | 515 | 170 | 35 | ... | ... |
| Cold-worked annealed / 5 in. (127 mm) in outside diameter and under | 550 | 240 | 30 | ... | ... |
| Cold-worked annealed / Over 5 in. (127mm) in outside diameter | 550 | 205 | 35 | ... | ... |
Applications
- Chemical industry
- Aerospace
- Heat treating industry
- Pulp and paper industry
- Food processing
- Nuclear Engineering
- Gas turbine components
